Dry running vane vacuum pump DST 100

Pay in instalments or apply for 30 days credit. Find out more.

Model: VPDST100
Weight: 120.00kg

US$ 5,600.00

Qty

Add to Cart

Buy Now Ask a question

Compare

Details

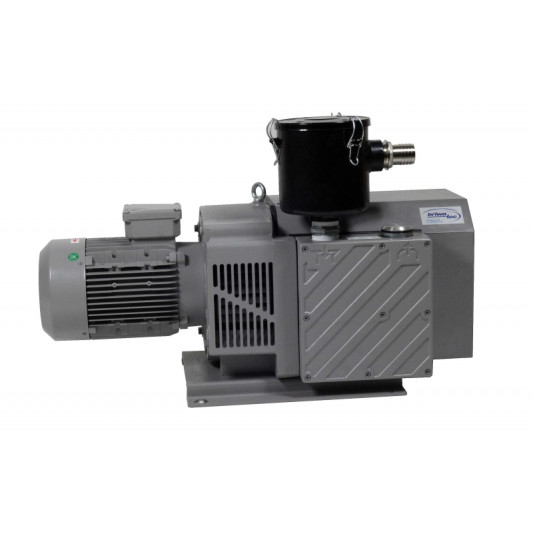

Dry running vane vacuum pump DST 100

The DST 100 is a dry running vane pump without the need for lubrication or maintenance to use.

Its oil free operation works on the vane type principal and uses self lubricating graphite carbon vanes.

Supplied with a 4 meter cable and on / off switch, for easy control, the DST 100 can be positioned away from your working area.

Our DST 100 is a maintenance free, reliable and environmentally safe choice of pump and ideal for use with our vacuum tables.

Specifications
Nominal displacement / Volume flow 50Hz	100 m³/h
Ultimate Pressure hPa	120 mbar
Nominal motor rating 50Hz	3 kW
Nominal motor speed 50Hz	1,400 (min)
Noise level 50Hz	75 dB(A)
Weight	100 Kg
