Vacuum table 3015 R

Popular

Vacuum table 3015 R

Pay in instalments or apply for 30 days credit. Find out more.

Model: VT3015-R
Weight: 1.50kg
Dimensions: 312.00mm x 162.00mm x 12.00mm

US$ 240.00

Qty

Add to Cart

Buy Now Ask a question

Compare

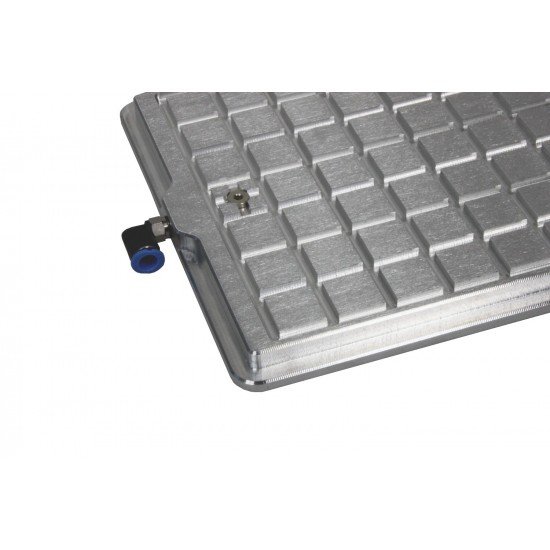

Vacuum table 3015 R

The 3015 R Series grid vacuum table is ready to use right away. Mount and connect your vacuum to the table using the provided set of connecting hose.

Face milled from both sides and fit for use with coolant the R Series is ideal for engraving giving you the ability to clamp and mill your workpieces quickly and easily.

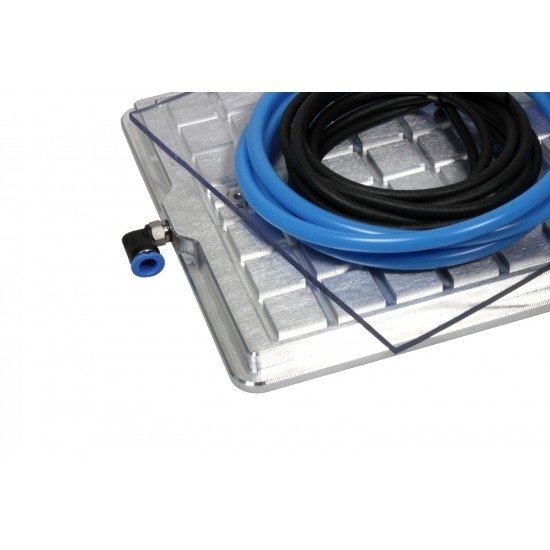

Includes
Item	Quantity
Vacuum manifold	1
PVC adapter mat	1
Set of connecting hose	1
Rubber sealing cord	10 metres

Vacuum table specifications
Material	Cast Aluminium
Clamping area (mm)	300 x 150
External dimensions (mm)	312 x 162 x 12
Vacuum points	1
Grid spacing	20 mm
Additional	6 mm surrounding clamping base

Recommended vacuum generators and pumps for use with the R Series of vacuum tables.

Product	Minimum	Recommended
VT2012 R	Venturi VT-VE 1	Venturi VT-VE 2 / DST 8
VT2020 R	Venturi VT-VE 1	Venturi VT-VE 2 / DST 8
VT3015 R	Venturi VT-VE 2	DST 8
VT3020 R	Venturi VT-VE 2	DST 8
VT4020 R	Venturi VT-VE 2	DST 8
VT4030 R	Venturi VT-VE 2	DST 8
VT5020 R	Venturi VT-VE 3	DST 8
VT5030 R	Venturi VT-VE 3	DST 8
VT5040 R	Venturi VT-VE 3	DST 8
VT6040 R	Venturi VT-VE 3	DST 8
VT7535 R	Venturi VT-VE 3	DST 8

Submit your custom design & specifications below
