Vacuum table A0 FAL

Pay in instalments or apply for 30 days credit. Find out more.

Model: VTA0-FAL
Weight: 99.00kg
Dimensions: 1,220.00mm x 870.00mm x 36.00mm

US$ 4,300.00

Qty

Add to Cart

Buy Now Ask a question

Compare

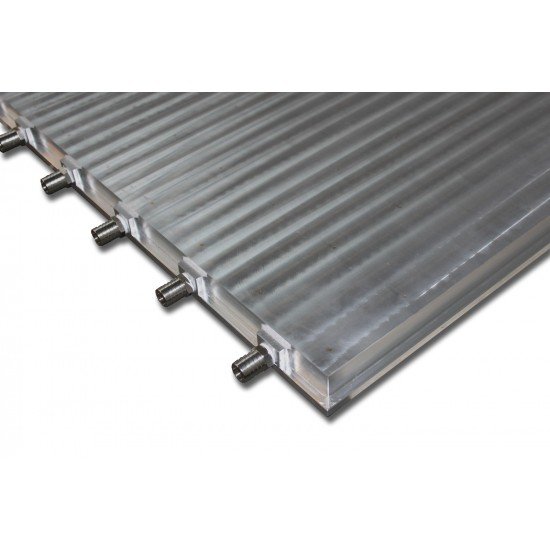

Vacuum table A0 FAL

The A0 FAL Series vacuum table is manufactured entirely from cast aluminium and offers high precision. Its grid of holes, measuring 0.6 mm, and very smooth surface make it ideal for vacuum clamping thin or flexible materials such as; film, paper or thin plastics.

Items included
Item	Quantity
Rubber cover mat	1
Set of connecting hose	1

Vacuum table specifications
Material	Cast Aluminium
Clamping area (mm)	1200 x 850
External dimensions (mm)	1220 x 870 x 36
Grid spacing	10 x 10 mm
Vacuum sections	7
Drill hole	0.6 mm
Hose connections	12 mm

Recommended vacuum generators and pumps for use with the FAL Series of vacuum tables

Product	Minimum	Recommended
A5 FAL	Venturi VT-VE 3	DST 8
A4 FAL	DST 16	DST 25
A3 FAL	DST 16	DST 25
A2 FAL	DST 25	DST 40
A1 FAL	Rubin 90	Rubin 220
A0 FAL	Rubin 220	Rubin 340
2420 FAL	DST 16	DST 25
4020 FAL	DST 16	DST 25
6040 FAL	DST 25	DST 40
