Starter vacuum clamping kit 2020
Pay in instalments or apply for 30 days credit. Find out more.
  • Model: STARTERKIT2020
  • Weight: 3.00kg
  • Dimensions: 212.00mm x 212.00mm x 12.00mm
US$ 290.00
US$ 350.00

Starter vacuum clamping kit 2020

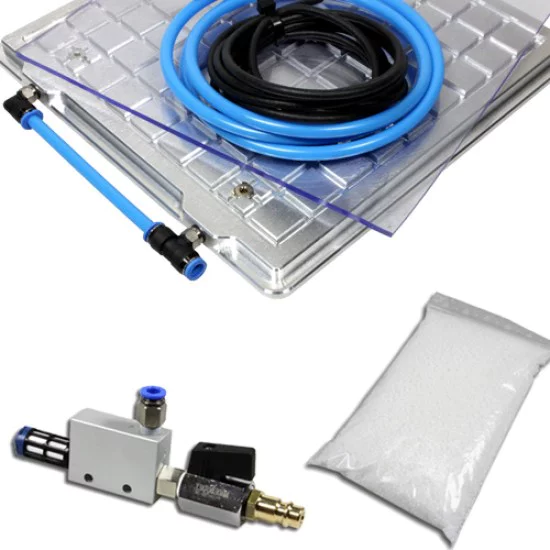

The Starter kit 2020 is an all-in-one solution with everything you need to start vacuum clamping.

Simply connect your R Series table to the Venturi using the hose and then to your compressor.

An adapter mat is also included if you want to mill all the way through.

Vacuum table specifications
MaterialCast aluminium
Clamping area (mm)200 x 200
External dimensions (mm)212 x 212 x 12
Vacuum points2
Grid spacing20 mm
Additional6 mm surrounding clamping base
